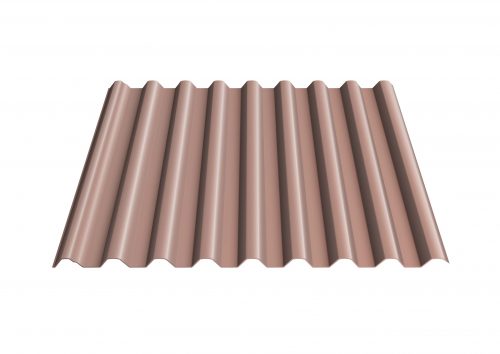

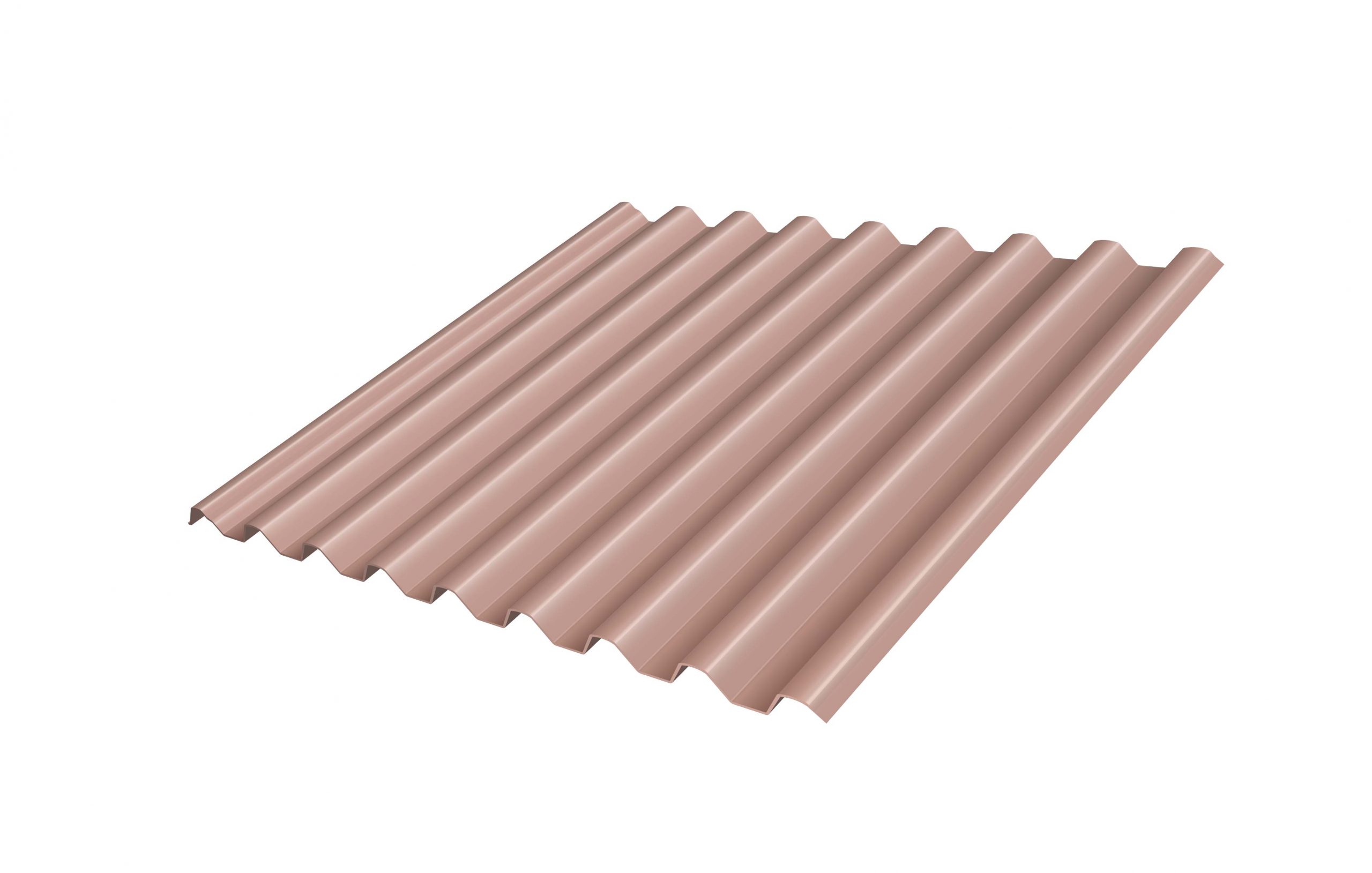

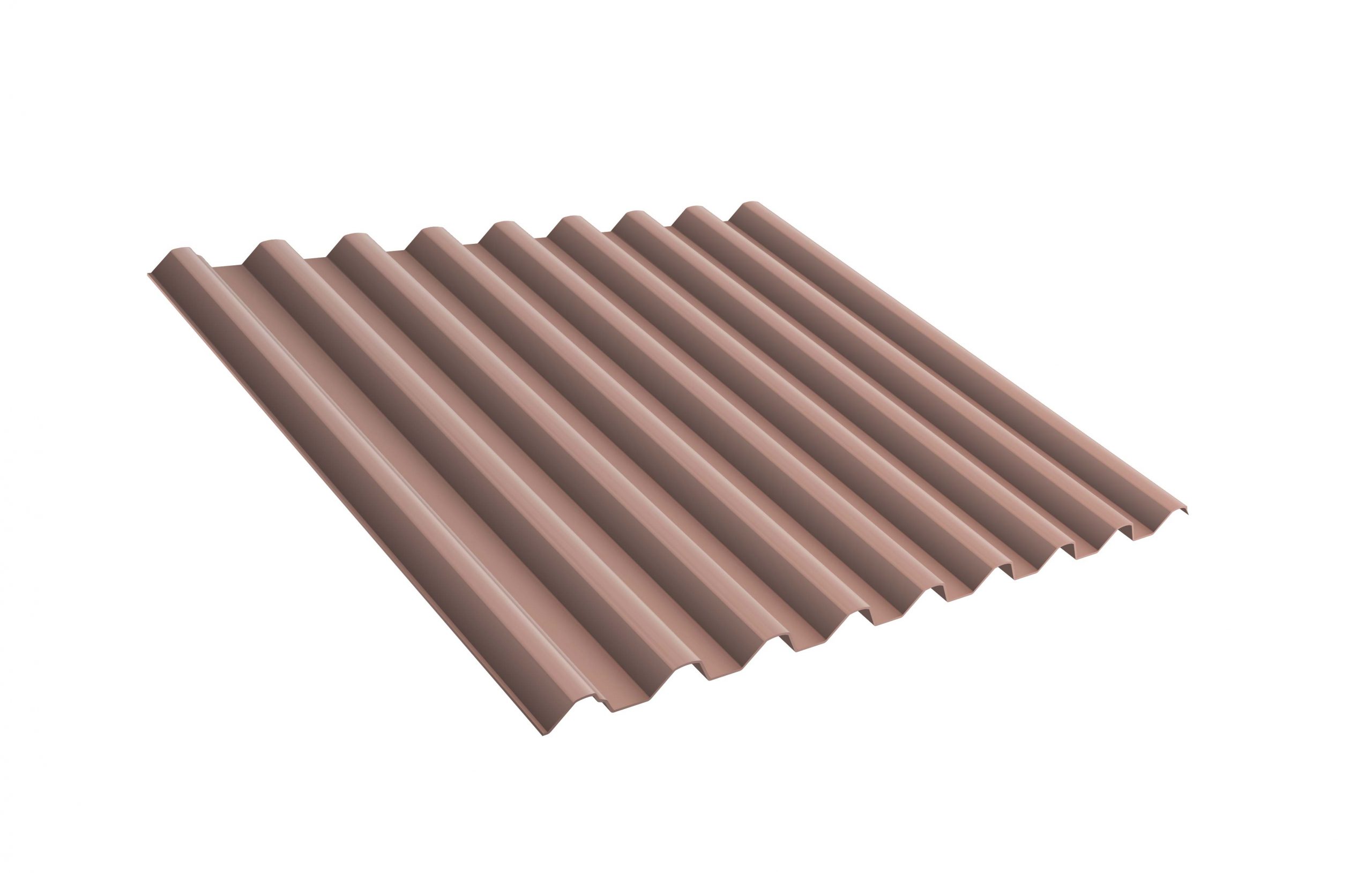

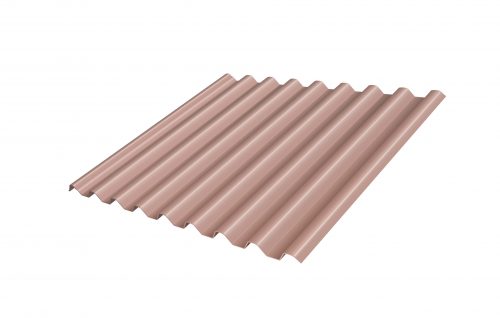

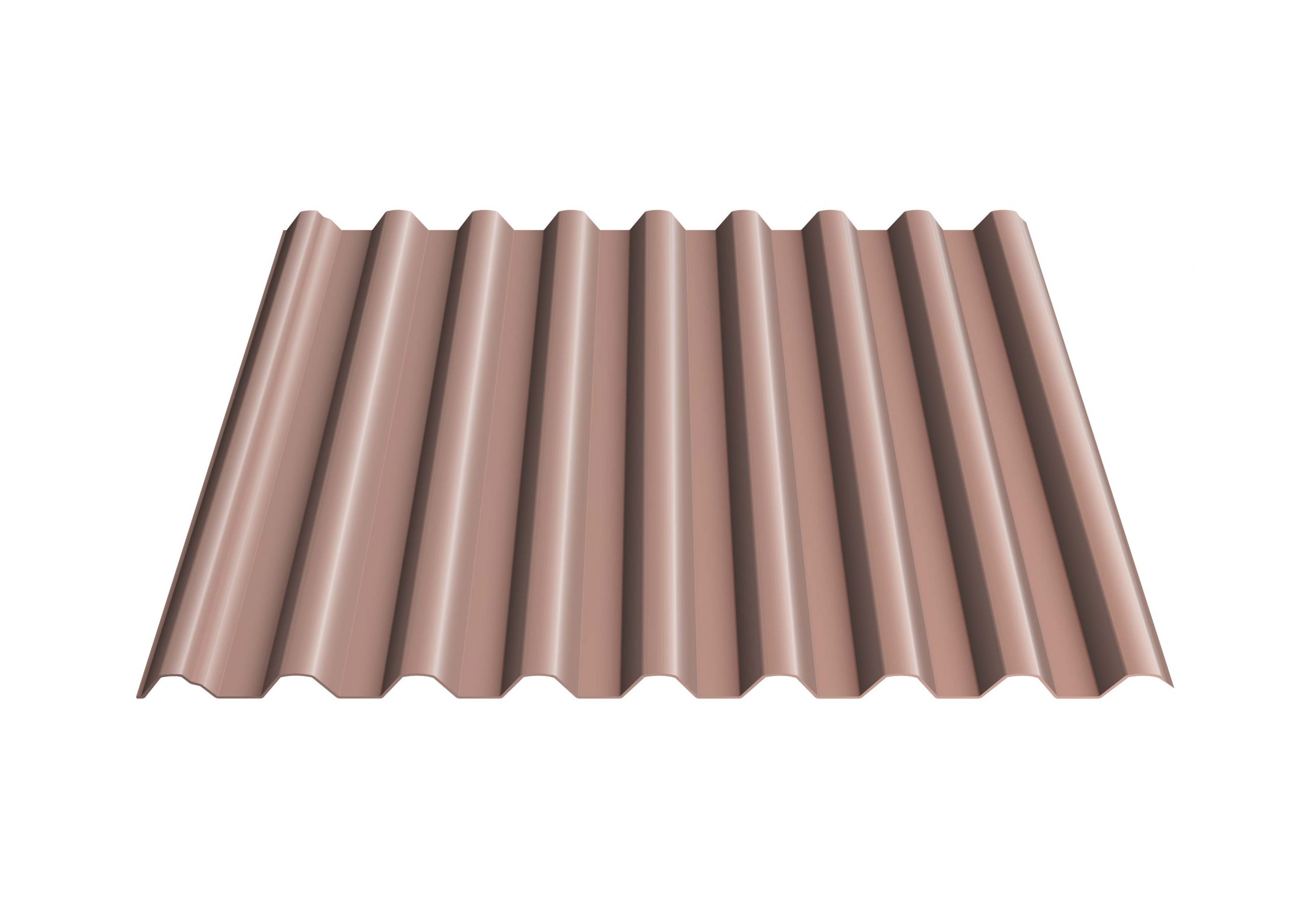

A symmetrical square-corrugated cladding profile for roofs and walls that is strong and impact resistant, ideal where a bolder, more modern appearance is desired. Strength, lightness and high water carrying capacity makes it suitable for long roof spans with reduced fastener requirements. Also used as a structural substrate for architectural standing seam roof systems.
| Nominal cover width: | 700mm |
| Rib Height: | 24mm |
| Minimum roof slope: | 3° |
*Only available in Sabah and Sarawak
| Coating Mass: | AZ150, AZ200 |
| Thickness: | 0.42mm, 0.48mm BMT |
| Steel Grade: | G550 |
 |
Actual colors may vary slightly from screen display. It is recommended to check actual color samples to confirm before purchasing.
