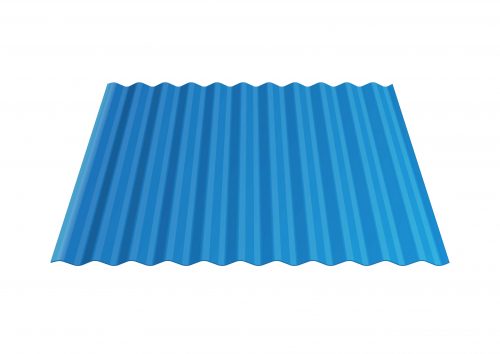

LYSAGHT® CUSTOM ORB® & CUSTOM BLUE ORB®

LYSAGHT® CUSTOM ORB® & CUSTOM BLUE ORB®

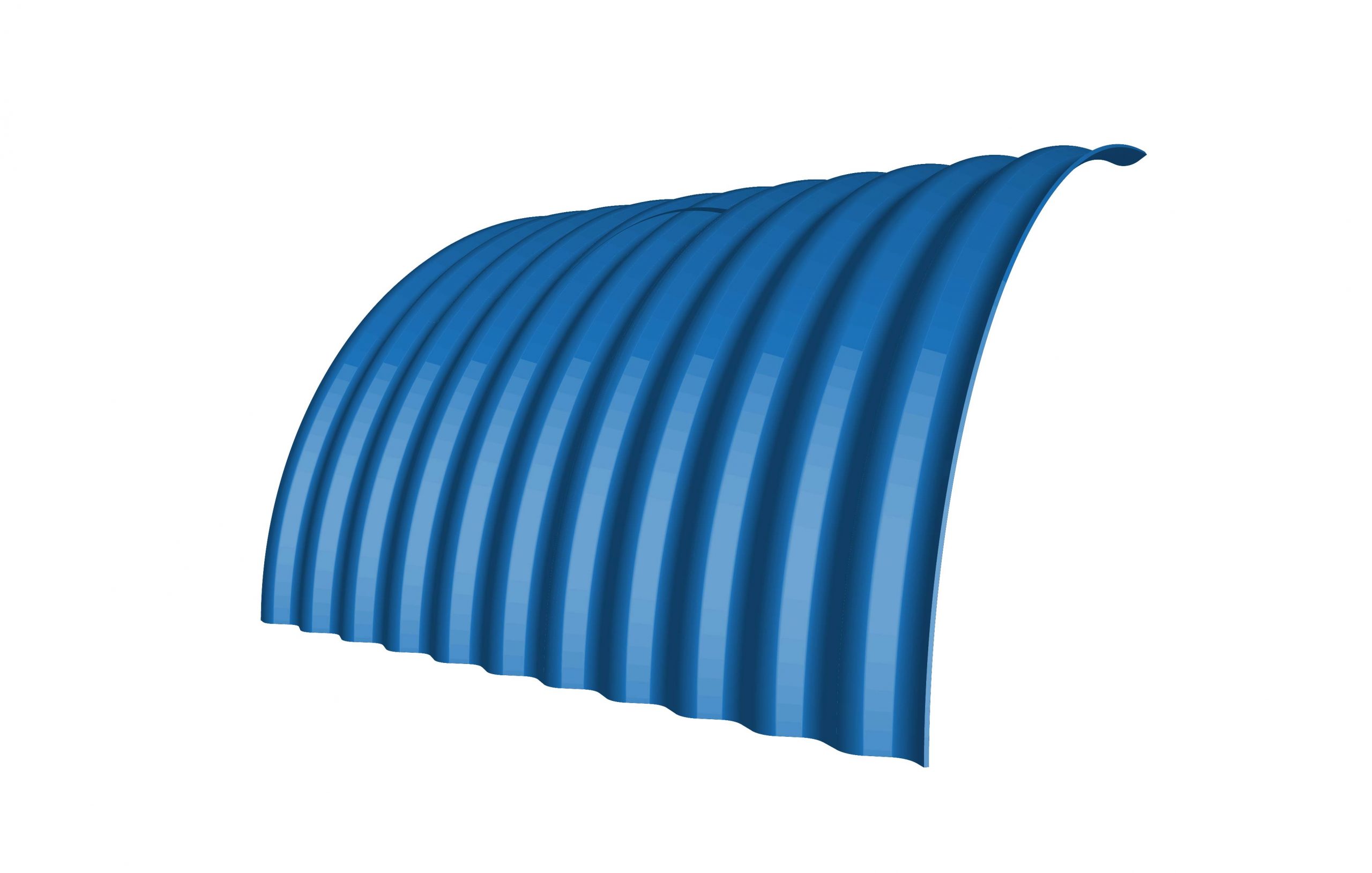

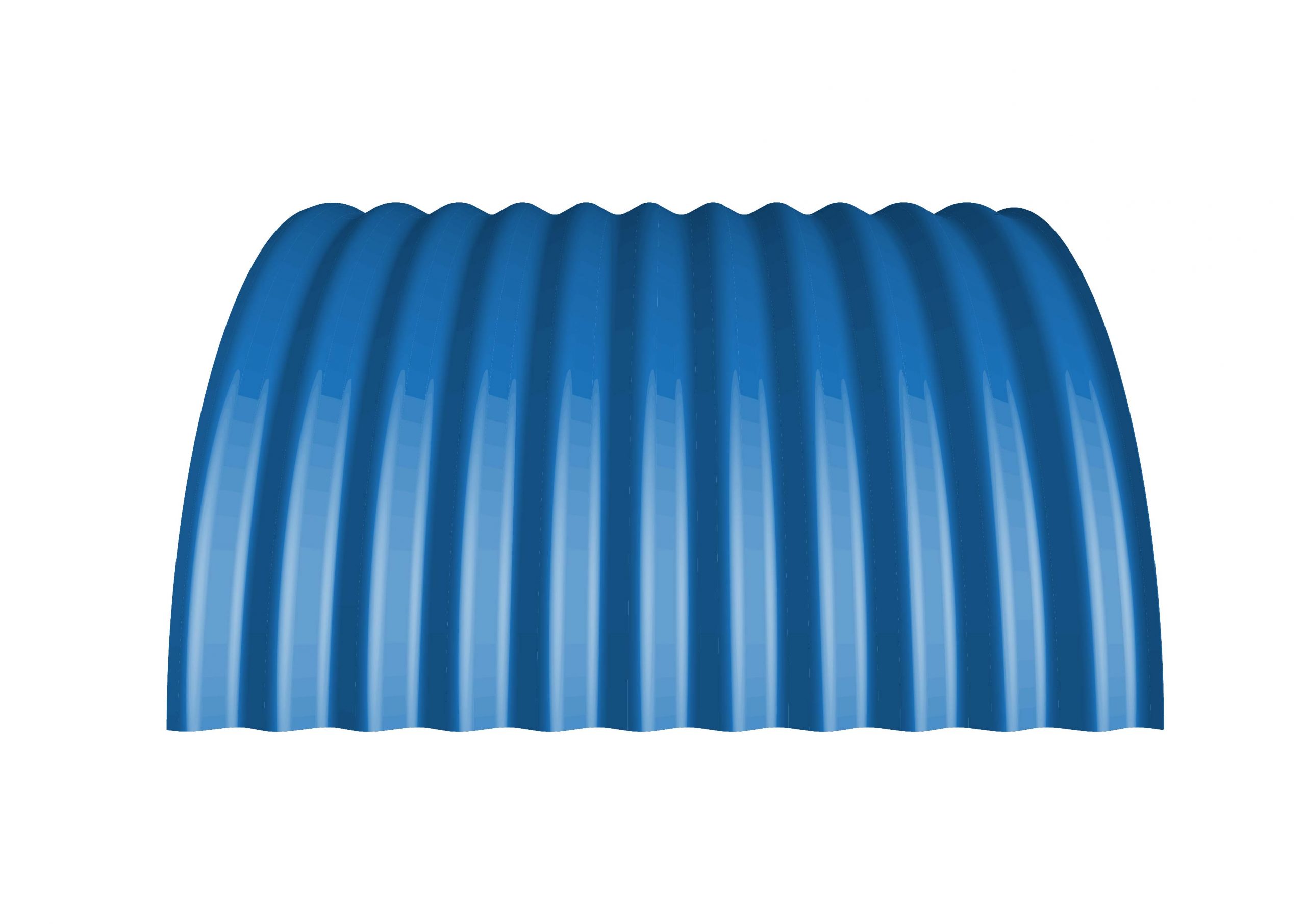

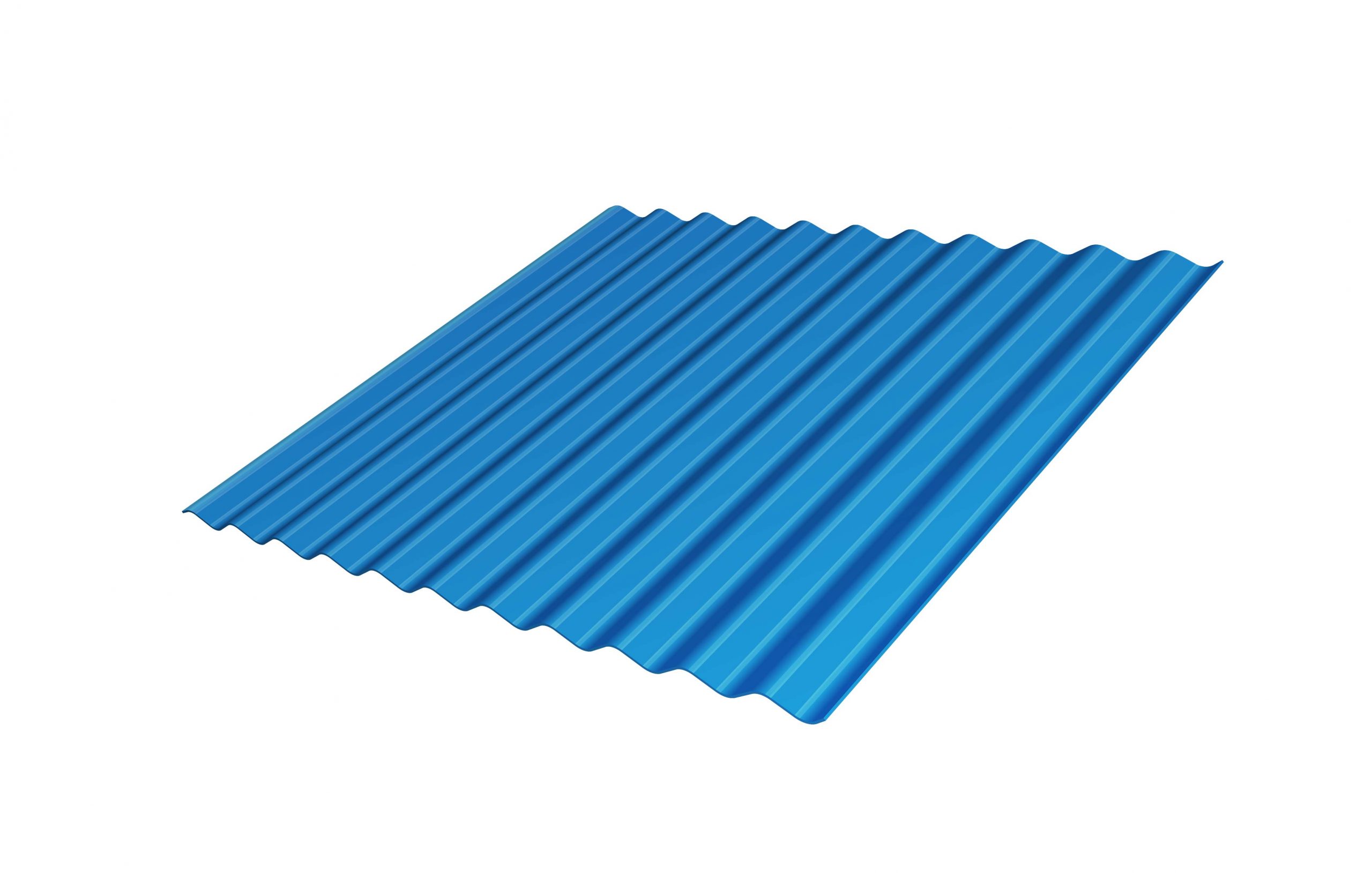

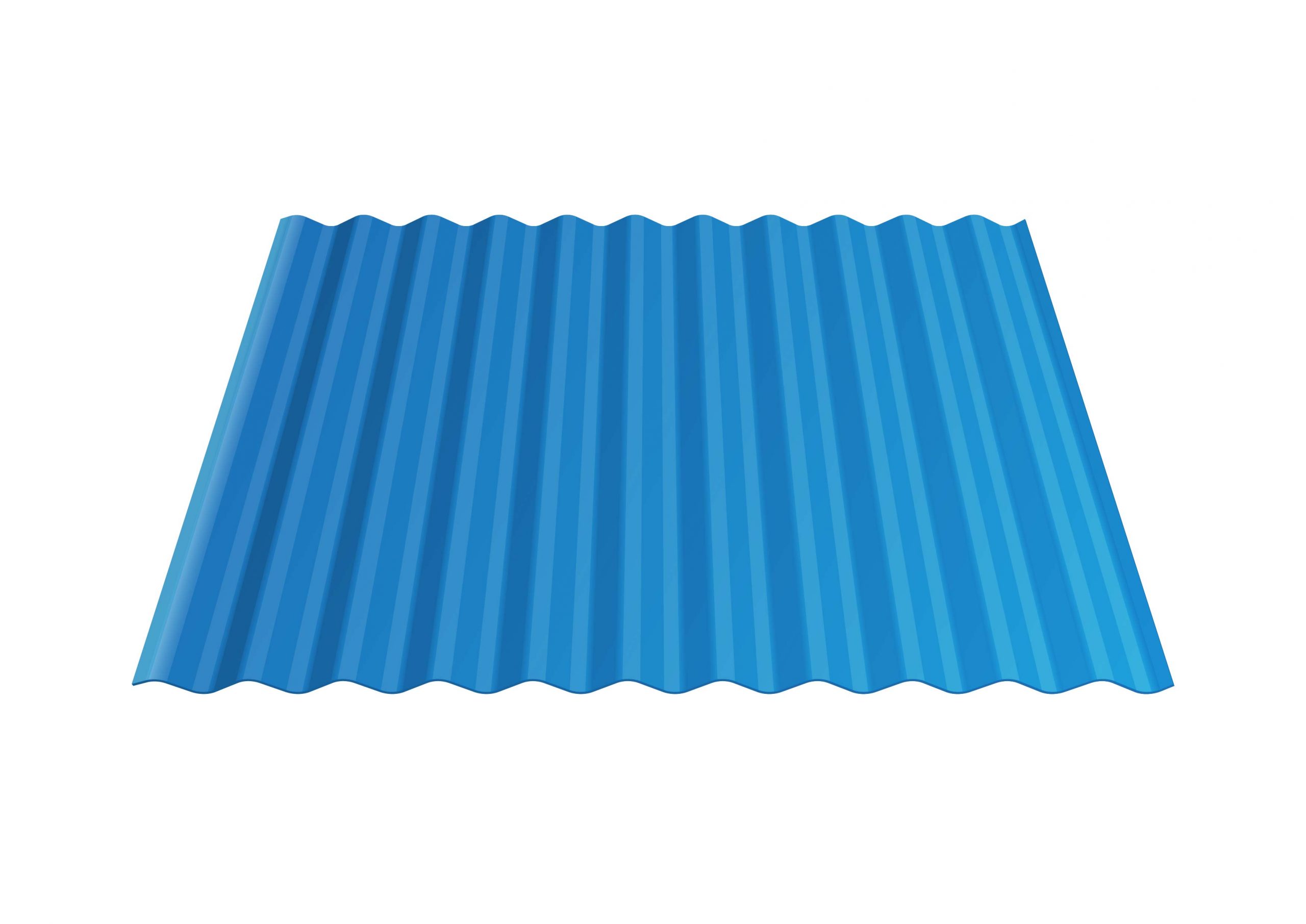

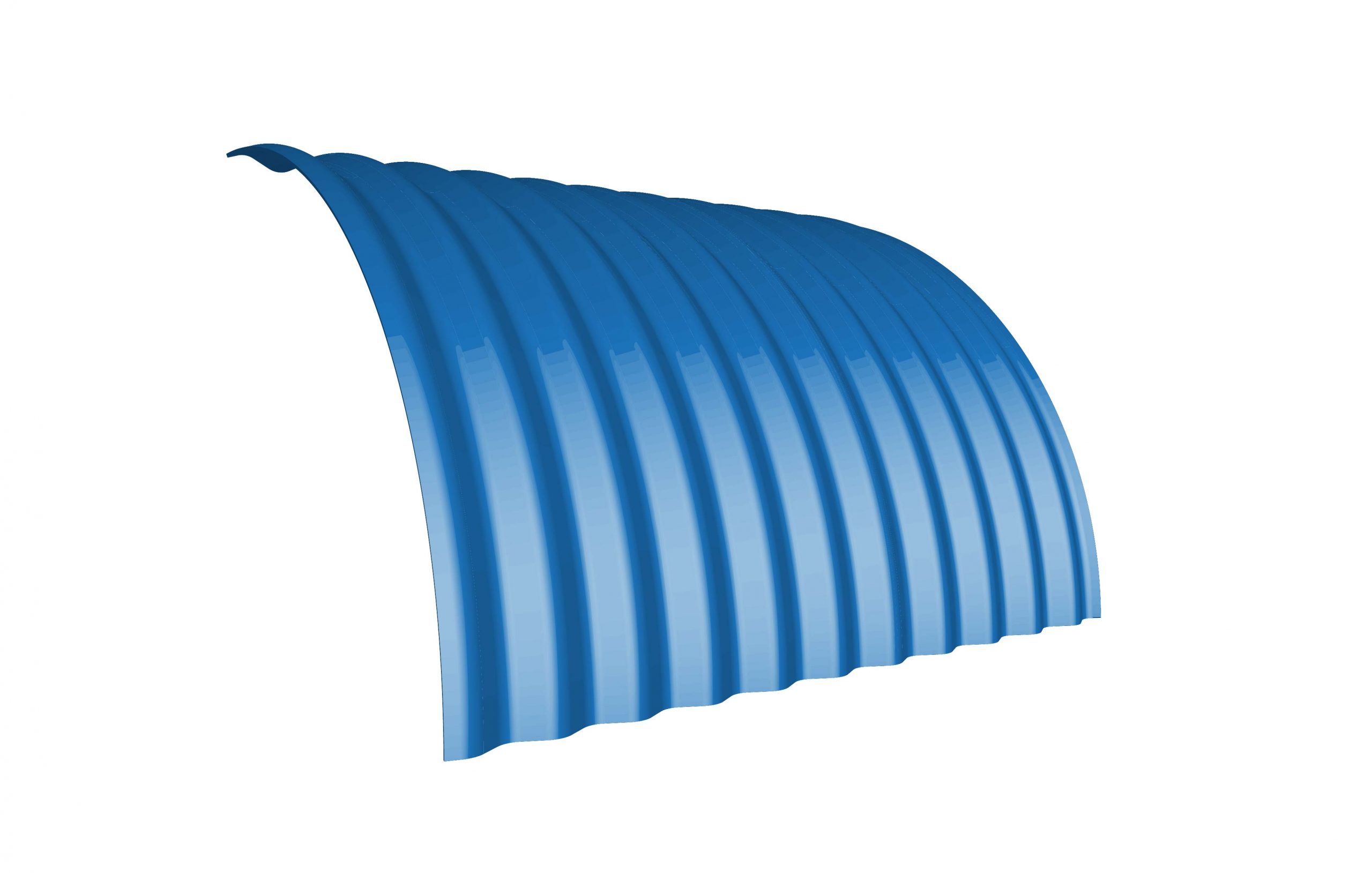

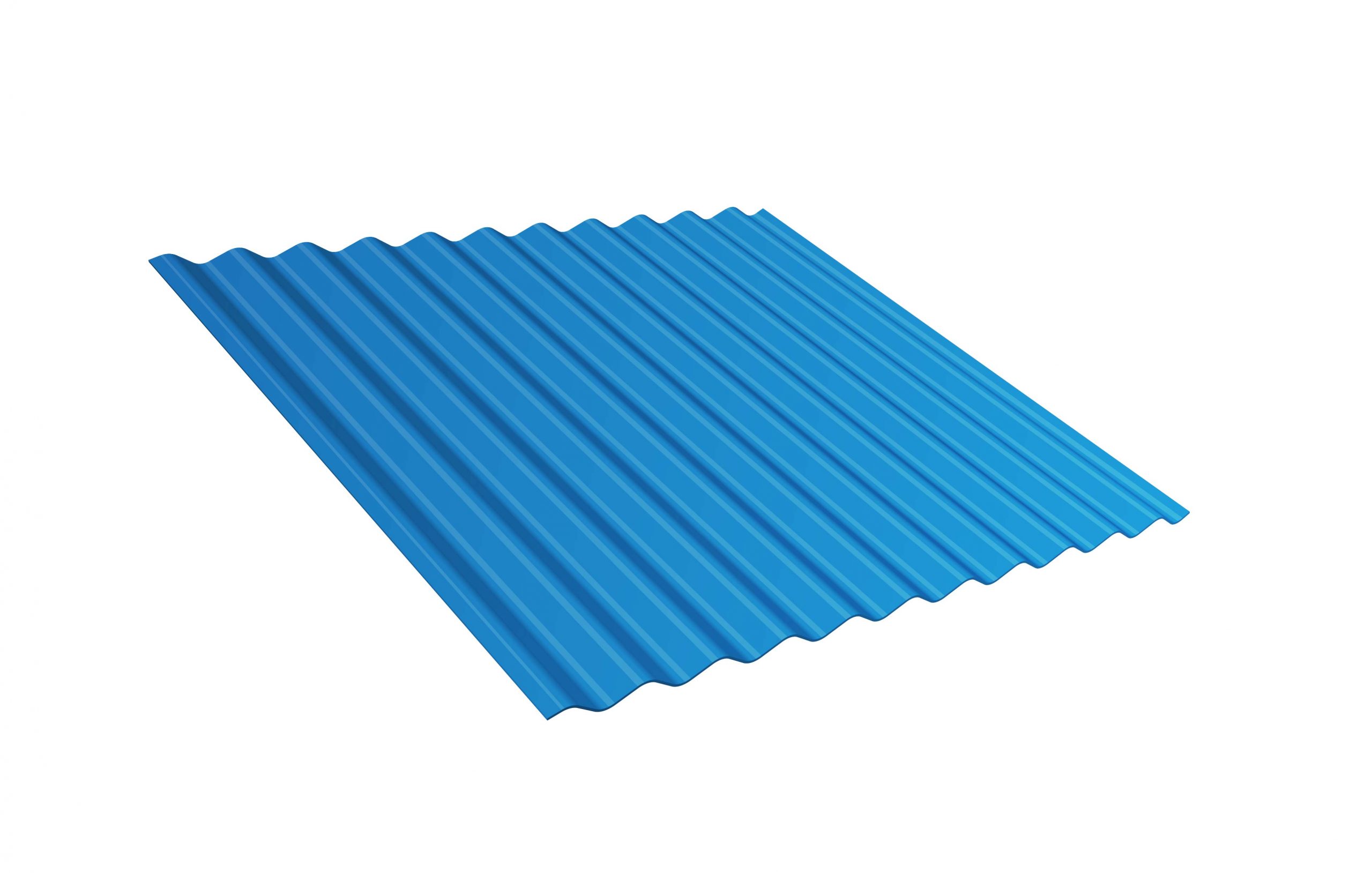

The original corrugated roof and wall cladding profile from Australia. Lightweight yet strong, CUSTOM ORB® is equally suitable for traditional and modern architectural design in residential, commercial and rural applications. CUSTOM BLUE ORB® uses more ductile steel suitable for bullnosing or curving into a range of concave and convex shapes.

Nominal cover width:762mm
Rib Height:16mm
Minimum roof slope:



BlueScope COLORBOND® Steel and ZINCALUME® Steel
Coating Mass:AZ150
Thickness:

0.42mm & 0.48mm BMT (for Custom Orb®)
0.60mm & 0.80mm BMT (for Custom Blue Orb®)
Steel Grade:

G550 (for Custom Orb®)
G300 (for Custom Blue Orb®)


                                          Product Specification


Actual colors may vary slightly from screen display. It is recommended to check actual color samples to confirm before purchasing.
